DIY synthesizer boards using ATMega328s and Auduino

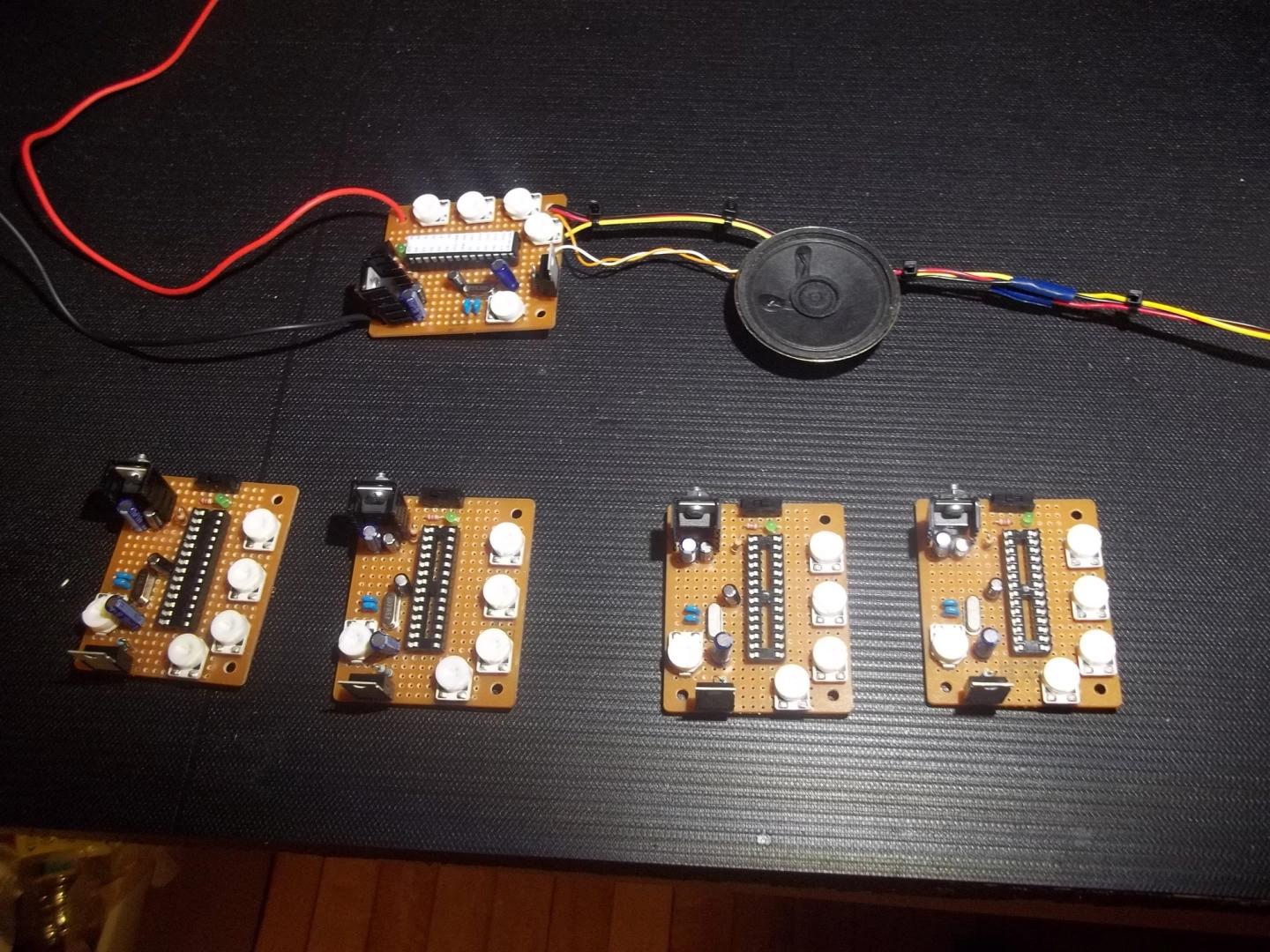

• Set of 5 custom synths
• Custom firmware that sonifies real-time distance sensor data using Auduino running on ATMega328 chips.

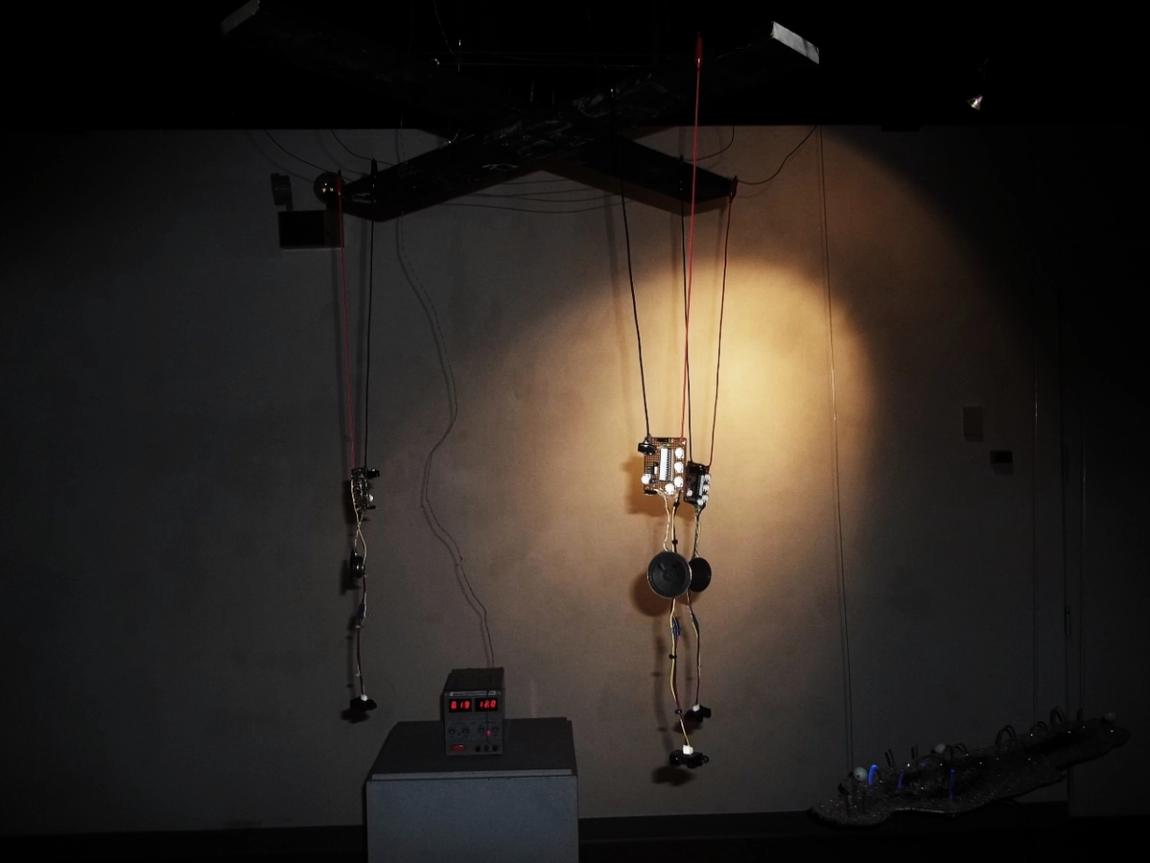

  • The sensor data changes as visitors walk by, and because they swing a little in the air.
  • Auduino quantizes the sensor data to notes on the pentatonic scale. Each synth is tuned to a different range.
• Powered by 12V light rails from which they hang

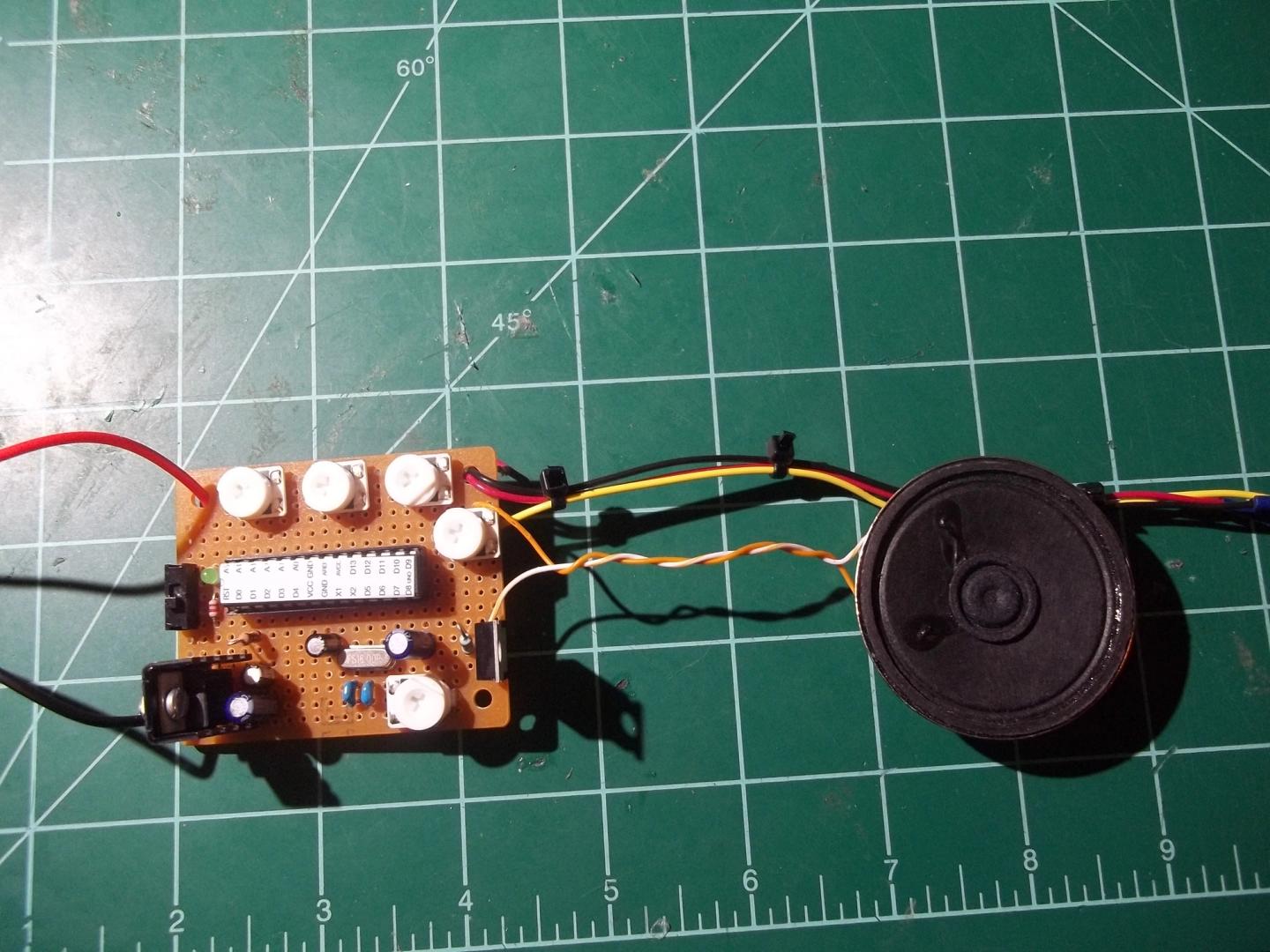

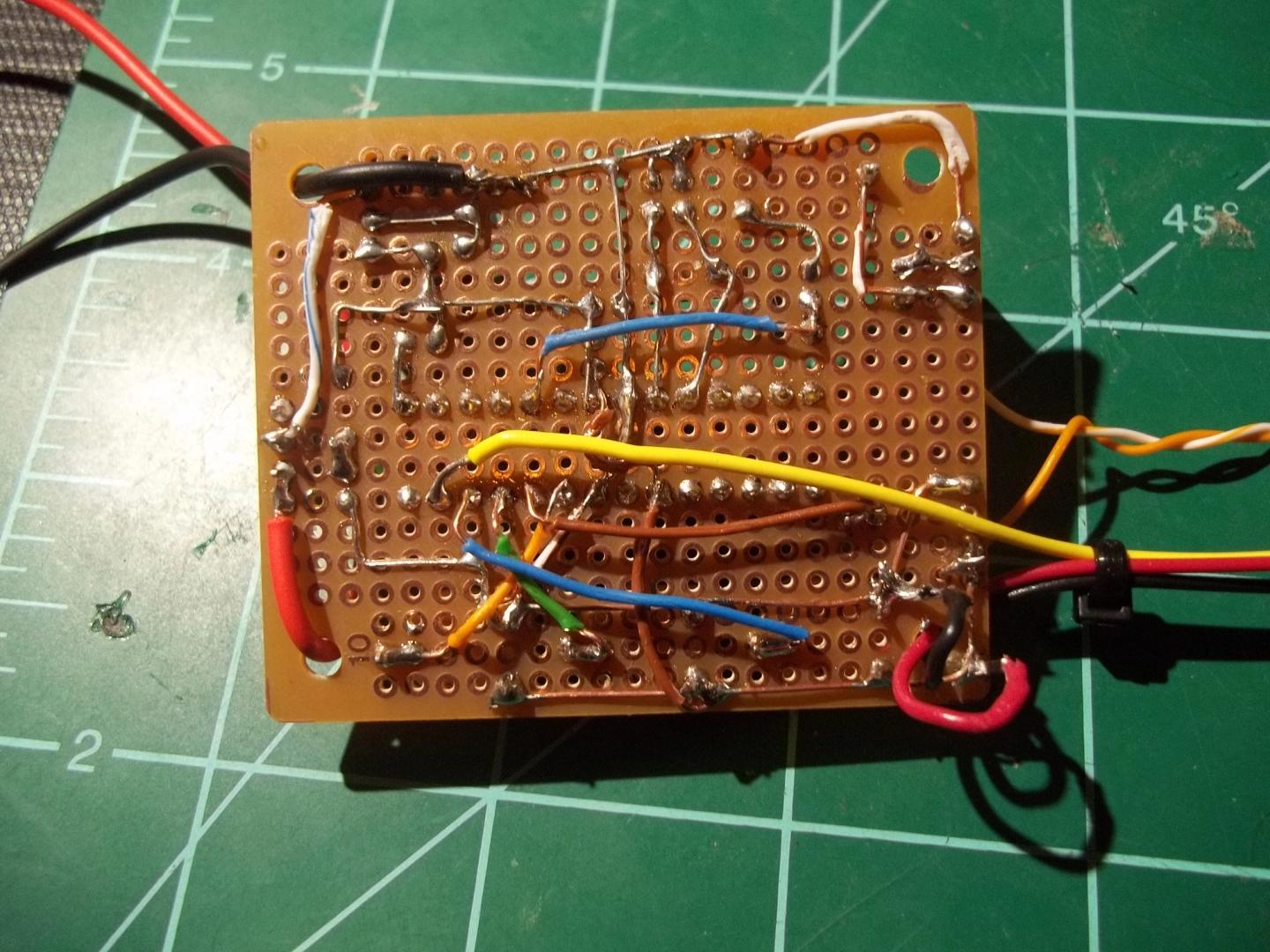

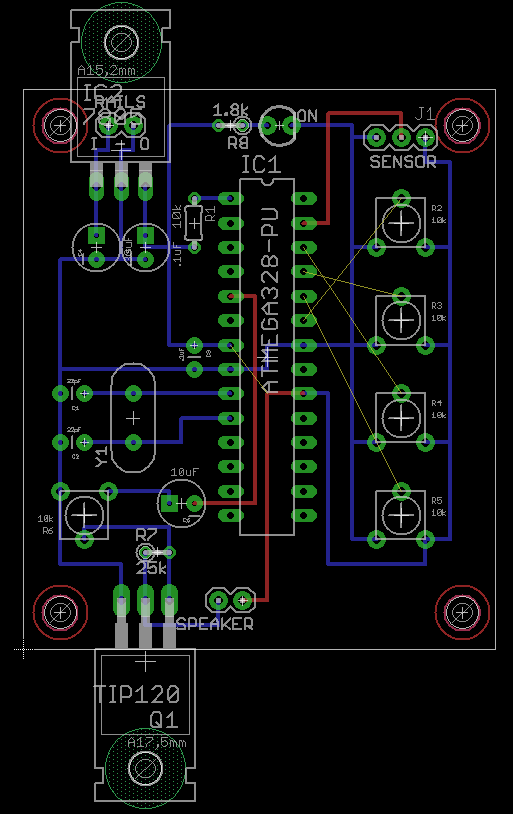

• Built on perfboard based on PCB layout in Eagle

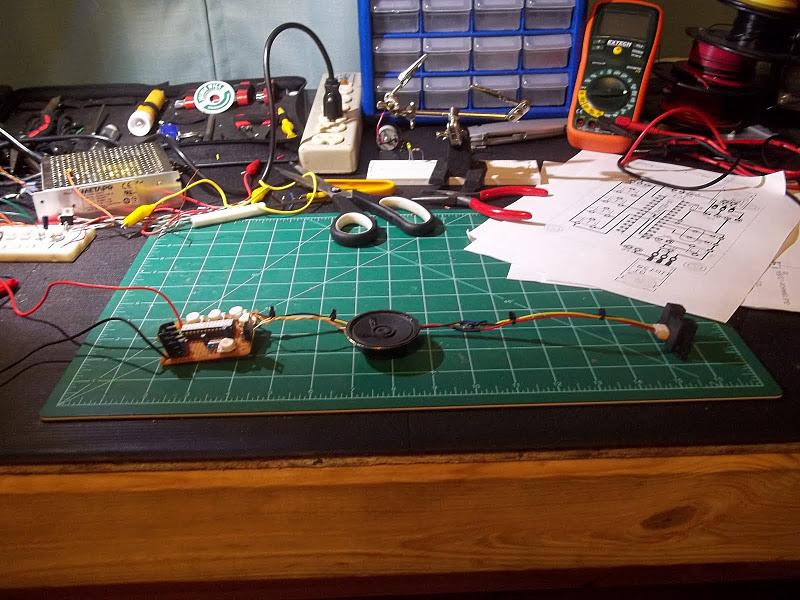

Build log
